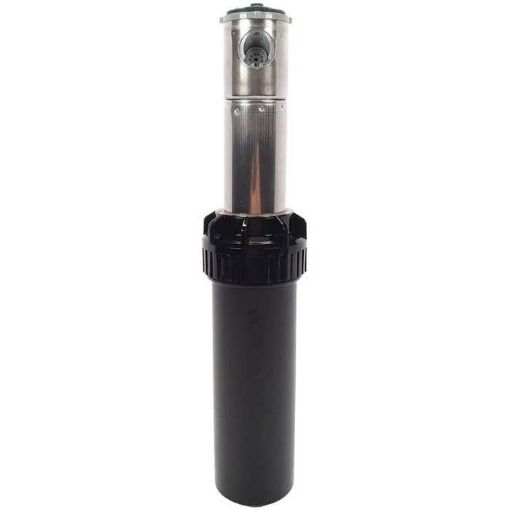

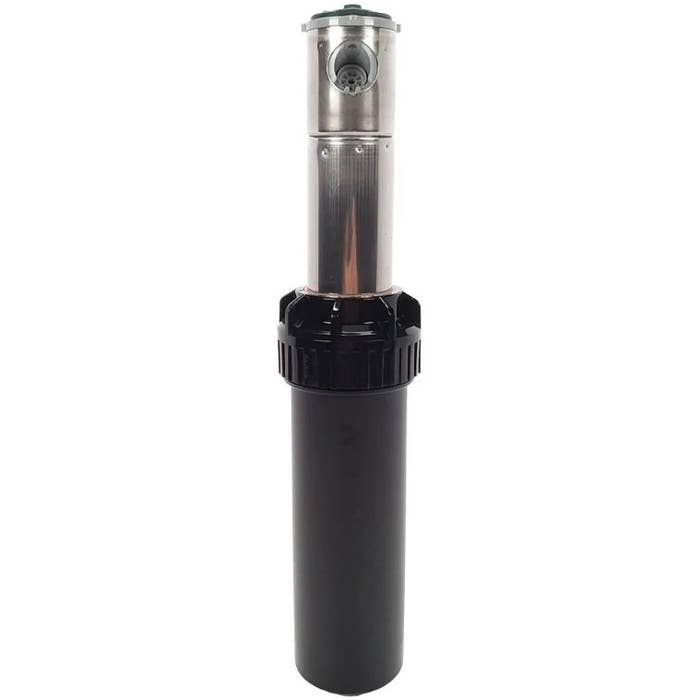

    5004PLPC PRS SAM Stainless Steel

    Manufacturer: Rain Bird
    • Pop-Up Height: 4 in
    • Inlet: 3/4 in
    • Coverage Radius: 26-38 ft
    Manufacturer part number: Y65750SS

    Features & Benefits

    The Rain Bird 5004 professional grade rotor offers rugged durability and performance along with the added precision of 12 extra nozzles in this Pro Pack to enable balancing precipitation rates with other rotors on the zone or adjusting trajectory to clear low tree branches or to water windy areas.

    Patented Rain Curtain nozzle technology provides even watering distribution over the entire radius, including close to the head, resulting in a greener lawn with less water.

    • Professional grade rotor offers rugged durability and performance
    • 26 - 38 ft. watering distance with pre-installed 3.0 GPM nozzle
    • Up to 50 ft. watering distance by changing nozzles (supplied)
    • 4 in. pop-up clears taller grass
    • 3/4 in. female threaded bottom inlet
    • Simple arc and radius adjustment from the top requiring only a flat-bladed screwdriver
    • Water-lubricated gear-drive design for durable, reliable operation
    • Dual-action, positive stop wiper seal protects internals from debris and, together with a heavy duty stainless steel spring, assures positive pop-up and retraction for water savings
    • Gentle close-in watering eliminates dry spots around the rotor, also avoiding seed wash-out
    • Includes 12 extra nozzles: (3 low trajectory 1.0 to 3.0 GPM and 8 Rain Curtain nozzles 1.5 to 8.0 GPM)
    • Durable rubber cover


    More Information

    More Information
    Model 5004+PCSAMRSS
    Rotor Series 5000 / 5000 Plus
    Coverage Radius 26-38 ft
    Inlet 3/4 in
    Features PRS Pressure Regulating, SAM Seal-A-Matic Check Valve
    Pop-Up Height 4 in
    Dimensions

    Hight:


    Operating Range
    • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
    • Radius: 25 to 50 feet (7,6 to 15,2 m)
    • Radius may be reduced up to 25% with radius reduction screw
    • Pressure: 25-65 psi (1,7 to 4,5 bar)
    • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
    • 3/4" (20/27) NPT female bottom threaded inlet
    • Reversing full and part circle adjustment 40° 360°
    • Pop-up height: 4" (10,2 cm)
    • Overall body height: 7 3/8" (18, 5 cm)
    • Exposed surface diameter: 1 5/8" (4,1 cm)
    *
    *
    *
    *
