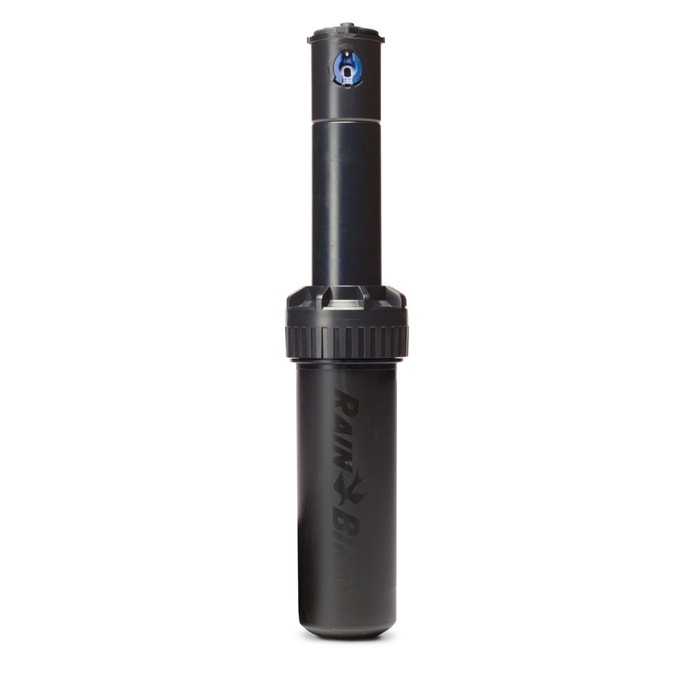

4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve
Faster maintenance with a new self-cleaning arc adjustment screw
Heavy-duty cover assembly for extra durability
Rain Curtain™ Nozzles
Slip clutch mechanism for quick adjustment on installation
Heavy-duty retract spring assures positive pop-down
Top-adjust arc adjustment requiring only a flat-blade screwdriver
40 - 360° arc rotation and reversing full circle rotation in one
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional O-rings and seals for extra protection in "gritty" water
Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Outstanding Results

Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout.

Superior Wind Resistance

The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money.

Superior Close-in Watering

Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

More Information
Model	5004PCSAM
Rotor Series	5000 / 5000 Plus
Coverage Radius	25-50 ft
Inlet	3/4 in
Features	Gear Drive, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles
Pop-Up Height	4 in
Operating Range	Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h) Radius: 25 to 50 feet (7,6 to 15,2 m) Radius may be reduced up to 25% with radius reduction screw Pressure: 25-65 psi (1,7 to 4,5 bar) Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications	3/4" (20/27) NPT female bottom threaded inlet
Coverage Arc	40° - 360° Reversing Full and Part-Circle
