ESP-LXIVM 2-Wire Controller, 60 Station Capacity-IrriFinder

60-station capability standard expandable to 240 stations with LXIVM Pro Panel
10 independent programs (LX-IVM) or 40 Programs (LX-IVM Pro); 8 start times per program
Four available sensor inputs (one wired plus up to three on 2-Wire path) with override switch. Eight (Seven plus 1) for LX-IVM Pro
Five flow sensors supported (LX-IVM), Ten for LX-IVM Pro
2-Wire Mapping: Maps the devices to corresponding wire paths in the controller to help quickly find and resolve issues
Self-Healing: Automatically detect “fixes” to wire path and splice issues and re-start irrigation without reliance on manual intervention
Two- Way Communication: with Intelligent Valve Modules (IVM) communication happens both ways enabling key features
Self-Shutoff : Once loss of power is detected, automatically shutoff valve to avoid leaks

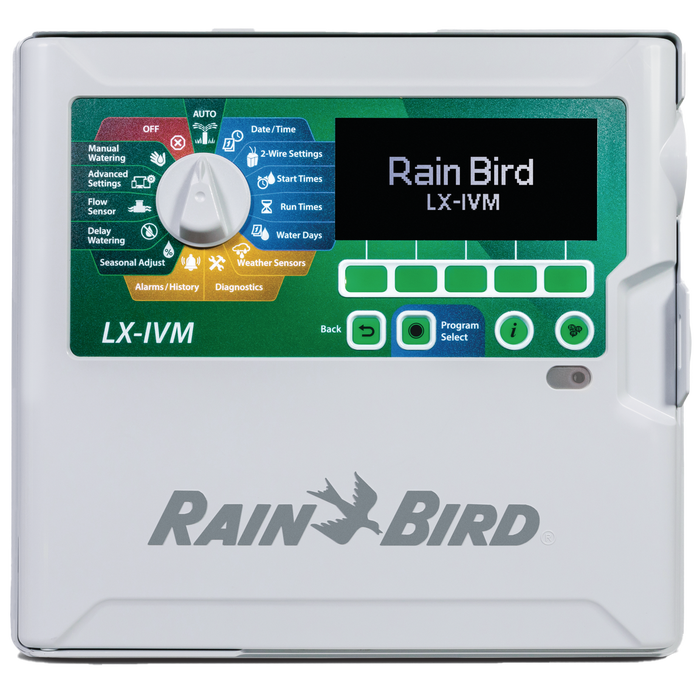

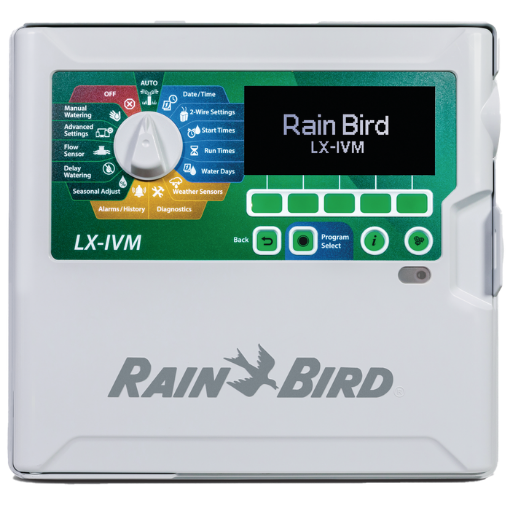

ESP-LXIVM 2-Wire Controller, 60 Station Capacity

Rain Bird’s newest 2-Wire Controller has many powerful new features like the Integrated Valve Module that stays in constant communication with the controller to provide efficient irrigation and advanced diagnostics.

The ESP-LXIVM supports up to 60 stations standard or 240 stations with LX-IVM Pro.

Up to four 2-Wire paths can be connected, plus flow sensing and advanced flow management tools that set new industry standards for state-of-the art water management.

Our most advanced irrigation controller offers fast and error-free installation, world-class diagnostics, and an updated version of the Industry’s favorite programming interface

More Information
Model	ESPLXIVM
Zones/Stations	60
Indoor/Outdoor	Indoor/Outdoor
Controller Type	Decoder-based
Dimensions	14.32” x 12.69” x 5.50” (36.4 x 32.2 x 14.0 cm)
Features	Battery Backup, Cycle+Soak, Delay Between Stations, English/Spanish, Flow Sensing, Manual Watering, Master Valve/Pump Start
Programs	10
Program Day Cycles	Custom days of the Week, Odd days, Even days, Cyclical (water every x days), Calendar day off, Event days off
Start Times per Zone/Program	8
Electrical Specifications	Input required: 120 VAC ± 10%, 60Hz (International models: 230 VAC ± 10%, 50Hz or 60Hz) Power back-up: For the full design life of 10 year, the Lithium coin-cell battery maintains time and date while nonvolatile memory maintains programs Compatible with Rain Bird commercial valves (PGA, PEB, GB, EFB-CP and BPE series)
