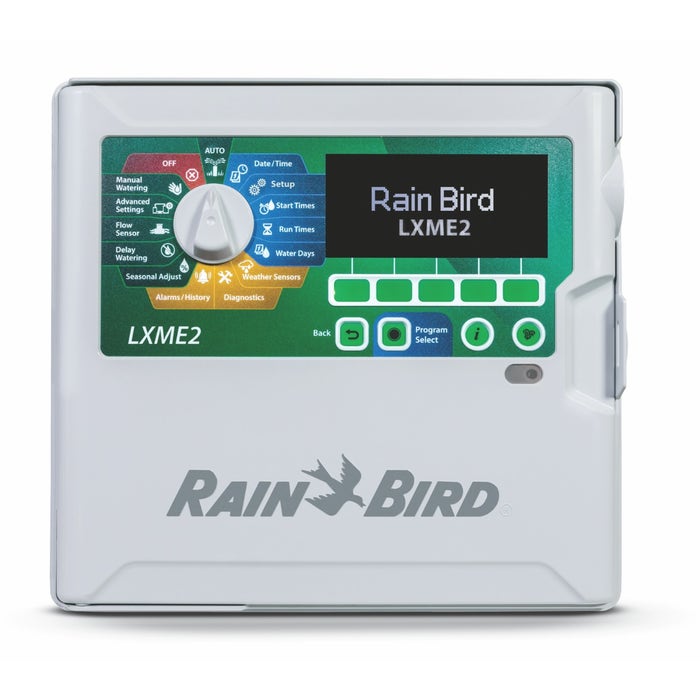

ESPLXME2P - Controller 12-station base unit expandable to 48 stations-IrriFinder

Specs

Water Management Features

Station Count: 12 Station Base Unit, Expandable Up to 48 Stations. (12 Station Expansion Modules)
FloZones (Master Valve + Flow Sensor.): 1 (One)
Booster Pump:V. 2/P for Station Level Booster Pump Control
Programs: 40
Simulstations: 5
Start Times: 10 Per Program
Flow Management: Yes (Factory Installed PRO Smart Module)
Optional Accessories: Powder-Coated or Stainless Steel Metal Cabinets and Pedestals.

Controller Features

Large backlit LCD display with easy to navigate softkey user interface
Hot-swappable modules, no need to power down the controller to add/remove modules
MV1 – Normally closed or Normally open Master valve/pump start circuit
Master valve delay and inter-station delay
6 user-selectable languages
Non-Volatile (100- year) program memory
Standard 10kV surge protection
The front panel is removable and programmable under battery power

More Information

More Information
Model	ESPLXME2P
Zones/Stations	12-48 expandable
Indoor/Outdoor	Indoor/Outdoor
Controller Type	Modular/Expandable
Dimensions	Width: 14.32 in. (36,4 cm) Height:12.69 in. (32,2 cm) Depth: 5.50 in. (14,0 cm)
Features	Flow Sensing
Electrical Specifications	Input required: 120 VAC ± 10%, 60Hz; 230 VAC +10% -6%, 50 Hz. Output: 26.5 VAC 1.9A Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
