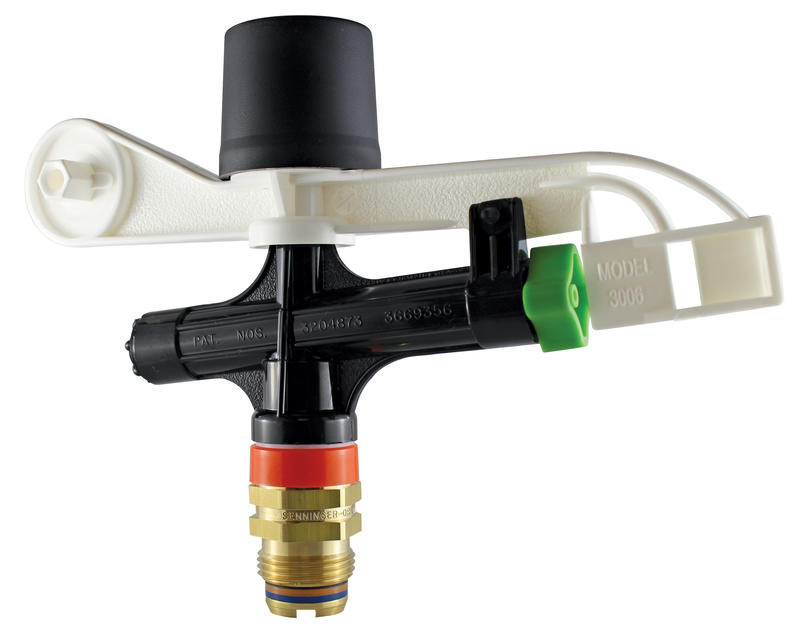

    Pivot-Master®Impact Sprinklers

    Manufacturer: Senninger
    Flows: 1.87 to 36.0 gpm (425 to 8177 L/hr) based on model
    Pressures: 30 to 60 psi (2.07 to 4.14 bar)
    *

    *
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available

    Senninger’s Pivot Master® impact sprinklers, often called Magpies™ due to their distinctive black and white color, distribute water in a low 6° trajectory and are designed to resist wind drift. Their large diameter of throw means fewer sprinklers are needed.

    Features

    Features

    • Color-coded band identifies each model based on flow

    • Durable design with an enclosed splasharm spring and bearing for protection from the elements

    • Connection: 3/4" NPT male brass

    • Two-year warranty on materials, workmanship and performance

    • Hand Tight Nozzles™ eliminate the need for tools during renozzling, are easily identified with color-coding, and are warranted to maintain their correct orifice size for five years

    Advanced Features

    Hand Tight Nozzles™

    The Hand-Tight nozzle combines the nozzle and vane. It eliminates the need for tools during cleaning or changing. The nozzle and vane combination is simply placed inside the barrel of a Senninger impact sprinkler and installed with a few quick turns.

    This new concept eliminates the possibility of losing a vane or nozzle retainer and simplifies renozzling. Square orifice nozzles also available.



    Pivot-Master®

    PIVOT-MASTER®
    DESIGN CRITERIA    		 3006 - Orange 4006 - White 5006 - Blue 5006-2 - Blue
    Nozzle Sizes
    Minimum #7  7/64" #10  5/32" #13  13/64"
    #13 x 12
    13/64" x 3/16"
    Maximum* #9  9/64" #12  3/16" #18  9/32"
    #18 x 18
    9/32" x 9/32"
    Flows
    Minimum 1.87 gpm 3.80 gpm 6.20 gpm 11.34 gpm
    Maximum 4.35 gpm 7.70 gpm 16.0 gpm 36.0 gpm
    Diameters
    Minimum at 12 ft 73 ft 80 ft 84 ft 84 ft
    Maximum at 12 ft 87 ft 93 ft 105 ft 105 ft
    Pressure at the Nozzle
    Minimum 30 psi 30 psi 30 psi 30 psi
    Maximum 60 psi 60 psi 60 psi 60 psi

    *It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates. Larger flow models available.

    Pivot-Master® (Metric)

    PIVOT-MASTER®
    DESIGN CRITERIA    		 3006 - Orange 4006 - White 5006 - Blue 5006-2 - Blue
    Nozzle Sizes
    Minimum #7  2.78 mm #10  3.97 mm #13  5.16 mm
    #13 x 12
    5.16 x 4.76 mm
    Maximum* #9  3.57 mm #12  4.76 mm #18  7.14 mm
    #18 x 18
    7.14 x 7.14 mm
    Flows
    Minimum 425 L/hr 863 L/hr 1408 L/hr 2576 L/hr
    Maximum 988 L/hr 1749 L/hr 3634 L/hr 8177 L/hr
    Diameters
    Minimum at 3.66 m 22.3 m 24.4 m 25.6 m 25.6 m
    Maximum at 3.66 m 26.5 m 28.3 m 32.0 m 32.0 m
    Pressure at the Nozzle
    Minimum 2.07 bar 2.07 bar 2.07 bar 2.07 bar
    Maximum 4.14 bar 4.14 bar 4.14 bar 4.14 bar

    *It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates. Larger flow models available.

    *
    *
    *
    *
