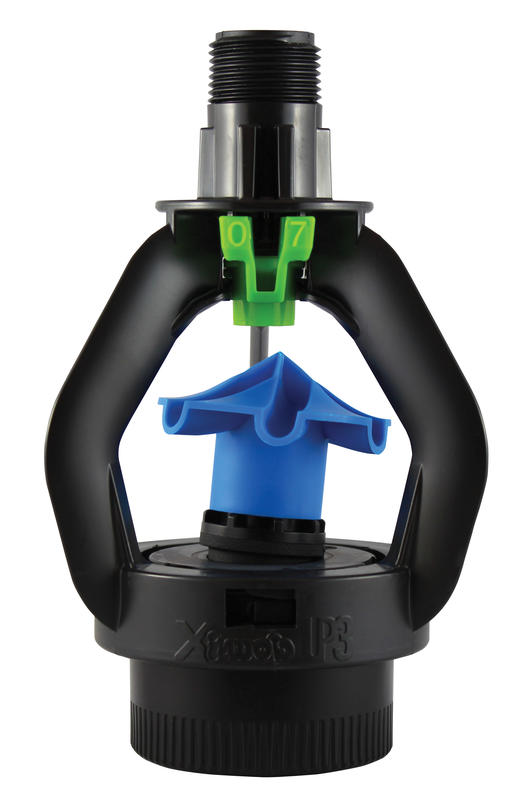

    Xi-Wob™

    Manufacturer: Senninger
    Flows: 1.09 to 15.78 gpm (248 to 3584 L/hr) based on model
    Pressures: 10 to 15 psi (0.69 to 1.03 bar)
    Selected option is not available
    *

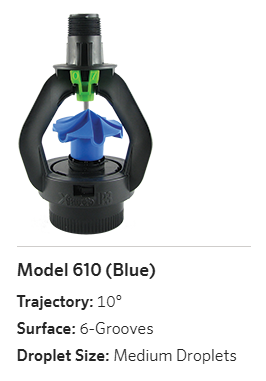

    • Model 610 (Blue)
      Model 610 (Blue)
      Not available

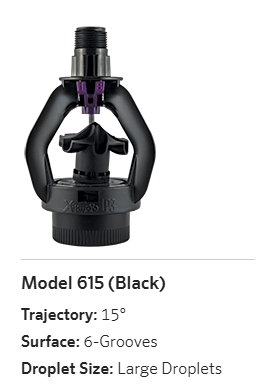

    • Model 615 (Black)
      Model 615 (Black)
      Not available

    Ideal for installation on semi-rigid PE drops, steel drops, and flexible hose drops when used with the Magnum Weight™.

    Features

    Features

    • Senninger® Wobbler® technology produces low application intensity to preserve soil integrity

    • Low pressure operation saves money and energy

    • Three different models available based on desired trajectory and droplet size

    • Two-year warranty on materials, workmanship and performance

    • Easy-change UP3® nozzle - simply pinch and pull to remove and place and click to reinstall, are easily identified with color-coding, and are warranted to maintain their correct orifice size for five years

    Advanced Features

    Senninger® Wobbler® Technology

    Senninger Wobbler technology ―rotation of grooved deflector coupled with wobbling action― provides the most uniform water application in center pivot irrigation systems. Senninger Wobbler sprinklers distribute droplets with lower application intensity over a large area of coverage at low pressures.

    UP3® Nozzle

    UP3 snap-in nozzles are easy to remove for cleaning or changing. To remove the nozzle simply pinch and pull, then place and click to re-install. There is no need to disassemble or remove the sprinkler.

    The color-coded nozzles are highly visible and easy to identify. The nozzle numbers (corresponding to orifice sizes in 64ths of an inch) are visible on the ears, with half sizes denoted beneath the second digit and the notches on the lower edge of the nozzle.



    Xi-Wob™

    XI-WOB
    DESIGN CRITERIA    		 Model 610 (Blue)
    6-Groove 10-Degrees
    Medium Droplets    		 Model 615 (Black)
    6-Groove 15-Degrees

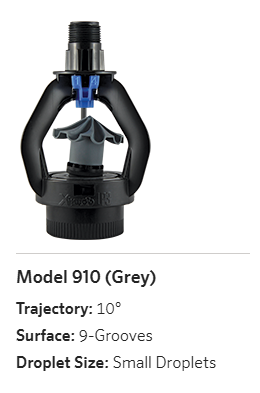

    Large Droplets    		 Model 910 (Grey)
    9-Groove 10-Degrees
    Small Droplets
    Nozzle Sizes
    Minimum #7  7/64" #10  5/32" #10  5/32"
    Maximum* #24  3/8" #24  3/8" #24  3/8"
    Flows
    Minimum 1.09 gpm 2.24 gpm 2.24 gpm
    Maximum 15.78 gpm 15.78 gpm 15.78 gpm
    Diameters
    Minimum at 3 ft 30 ft 38 ft 33 ft
    Maximum at 3 ft 41 ft 43 ft 36 ft
    Minimum at 6 ft 35 ft 43 ft 38 ft
    Maximum at 6 ft 45 ft 50 ft 43 ft
    Minimum at 9 ft 37 ft 46 ft 43 ft
    Maximum at 9 ft 47 ft 55 ft 50 ft
    Maximum Spacing**
    at 6 ft ground clearance 18 ft 20 ft 18 ft
    at 9 ft ground clearance 18 ft 20 ft 18 ft
    Pressure at the Nozzle
    Minimum 10 psi 10 psi 10 psi
    Maximum 15 psi 15 psi 15 psi

    *It is recommended that larger nozzle sizes be used only on soils that are suited for higher application rates.
    ** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
    Note: When outlet spacing exceeds 10 ft, keep Xi-Wobs above crop canopy. This is especially important on high profile crops. Not warranted for rigid installation on offsets or booms larger than 10.5 ft. Longer offsets and booms require a minimum of 2 ft reinforced flex hose.





    Xi-Wob™ (Metric)

    XI-WOB
    DESIGN CRITERIA    		 Model 610 (Blue)
    6-Groove 10-Degrees
    Medium Droplets    		 Model 615 (Black)
    6-Groove 15-Degrees
    Large Droplets    		 Model 910 (Grey)
    9-Groove 10-Degrees
    Small Droplets
    Nozzle Sizes
    Minimum #7 2.78 mm #10 3.97 mm #10 3.97 mm
    Maximum* #24 9.53 mm #24 9.53 mm #24 9.53 mm
    Flows
    Minimum 248 L/hr 509 L/hr 509 L/hr
    Maximum 3584 L/hr 3584 L/hr 3584 L/hr
    Diameters
    Minimum at 0.91 m 9.1 m 11.6 m 10.1 m
    Maximum at 0.91 m 12.5 m 13.1 m 11.0 m
    Minimum at 1.83 m 10.7 m 13.1 m 11.6 m
    Maximum at 1.83 m 13.7 m 15.2 m 13.1 m
    Minimum at 2.74 m 11.3 m 14.0 m 13.1 m
    Maximum at 2.74 m 14.3 m 16.8 m 15.2 m
    Maximum Spacing**
    1.8 m ground clearance 5.5 m 6.1 m 5.5 m
    at 2.74 m ground clearance 5.5 m 6.1 m 5.5 m
    Pressure at the Nozzle
    Minimum 0.69 bar 0.69 bar 0.69 bar
    Maximum 1.03 bar 1.03 bar 1.03 bar

    *It is recommended that larger nozzle sizes be used only on soils that are suited for higher application rates.
    ** For optimum performance, Senninger recommends the use of maximum spacing for 1-2 spans only.
    Note: When outlet spacing exceeds 3.0 m, keep Xi-Wobs above crop canopy. This is especially important on high profile crops. Not warranted for rigid installation on offsets or booms larger than 3.2 m. Longer offsets and booms require a minimum of 0.61 m reinforced flex hose.





    Pivot Wobbler® Comparison

    Low Pressure - High Performance Sprinklers
    Wobbler technology™ was introduced by Senninger® Irrigation in 1978 and became an industry standard. Over the years, Senninger has developed several Wobblers designed to improve irrigation efficiency. These sprinklers are well-known for their ability to spread water in an instantaneous, uniform pattern using very low operating pressures.



      i-Wob2 Xi-Wob Xcel-Wobbler UP3
    Nozzles
      #6 - #26 #7 - #24 #6 - #26
      3/32" - 11/32" 7/64" - 3/8" 3/32" - 11/32"
    Flows
      0.80 - 18.35 gpm 1.09- 15.78 gpm 0.8 - 14.98 gpm
    Diameters
      26 - 59 ft 30 - 55 ft 43 - 51 ft
    Maximum Spacing
      20 ft 20 ft 20 ft
    Pressure at the Nozzle
      6 - 15 psi 10 - 15 psi 10 psi





    Pivot Wobbler® Comparison (Metric)

    Low Pressure - High Performance Sprinklers
    Wobbler technology™ was introduced by Senninger® Irrigation in 1978 and became an industry standard. Over the years, Senninger has developed several Wobblers designed to improve irrigation efficiency. These sprinklers are well-known for their ability to spread water in an instantaneous, uniform pattern using very low operating pressures.



      i-Wob2 Xi-Wob Xcel-Wobbler UP3
    Nozzles
      #6 - #26 #7 - #24 #6 - #26
      2.38-10.32 mm 2.78-9.53 mm 2.38-10.32 mm
    Flows
      182 - 4168 L/hr 248 - 3584 L/hr 182 - 3402 L/hr
    Diameters
      8.0 - 18.0 m 9.1 - 16.8 m 13.1 - 15.5 m
    Maximum Spacing
      6.1 m 6.1 m 6.1 m
    Pressure at the Nozzle
      0.41 - 1.03 bar 0.69 - 1.03 bar 0.69 bar
    *
    *
    *
    *
