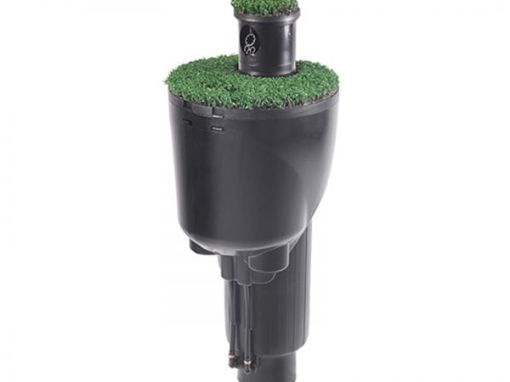

HYDRA-2-M

Highlights

Innovative nozzle technology delivers high uniformity
Integrated Valve-In-Head models for individual rotor management and greater efficiency
Fast rotation speed – 360° arc in 130 – 280 seconds
Closed case rotor design for maximum efficiency and durability

Features

Innovative Nozzle Technology

The unique nozzle design minimises water turbulence, which results in longer throw, reduced flows and high uniformity. Nozzles are easily removed and replaced.

Easy Arc Adjustment

Hydra-2-M is available in a present full circle (360°) and adjustable arc model (30-330°). Adjustable arc model is adjustable from both arc stops:

Left hand arc – up to 90°
Right hand arc – 30° to 330°

VAC Valve-In-Head

Available with a built-in 24 VAC electric Valve-in-Head body. This allows ON/OFF/Auto control at the rotor and provides individual management of each rotor to ensure that they perform at their highest level of efficiency.

Top Serviceable

All parts including the solenoid can be serviced from the top of the sprinkler without the need for digging.

Specifications

Nozzle Sizes:

7, 8, 9, 10 and 11 mm

Operating Pressure:

350 – 700 kPa

Radius Range:

20 – 31.5 m

Flow Rate:

70 – 190 Lpm

Trajectory:

25°

Inlet:

1½” BSP Female
