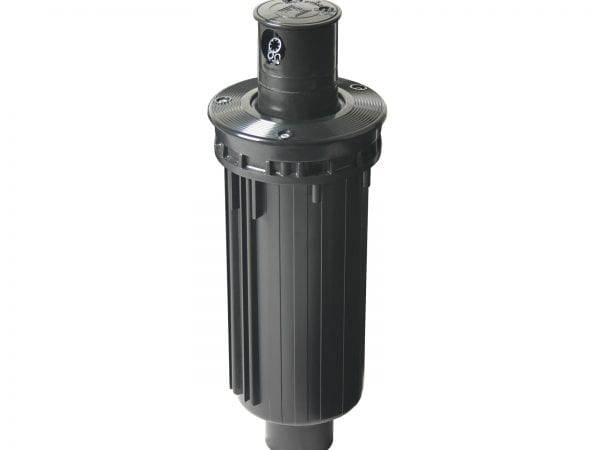

HYDRA-2-S

Highlights

Innovative nozzle technology delivers high uniformity
Integrated Valve-In-Head models for individual rotor management and greater efficiency
Fast rotation speed – 360° arc in 60 – 130 seconds
Closed case rotor design for maximum efficiency and durability

Features

Innovative Nozzle Technology

The unique nozzle design minimises water turbulence, which results in a longer throw, reduced flows and high uniformity. Nozzles are available in 4, 5, 6, 7, 8 and 9 mm sizes. Nozzles are easily removed / replaced.

Easy Arc Adjustment

Hydra-2-S is available in a preset full circle (360°) and adjustable arc model (30-330°). Adjustable arc model is adjustable from both arc stops:

Left hand arc – up to 90°
Right hand arc – 30° t 330°

VAC Valve-In-Head

Available with a built-in 24 VAC electric Valve-in-Head body. This allows ON/OFF/Auto control at the rotor and provides individual management of each rotor to ensure that they perform at their highest level of efficiency.

Top Serviceable

All parts including the solenoid can be serviced.

Specifications

Nozzle Sizes:

4, 5, 6, 7, 8 & 9 mm

Operating Pressure:

350 – 700 kPa

Radius Range:

14.5 – 25 m

Flow Rate:

41 – 165 Lpm

Rotation Time:

60 – 130 Sec/360°

Trajectory:

25°

Inlet:

1″ BSP Female
