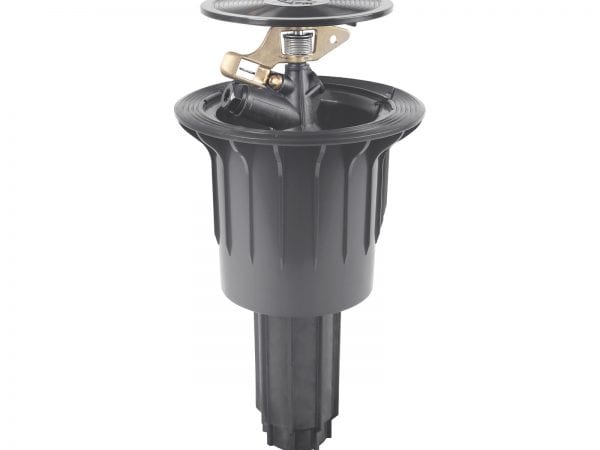

Triton-L Series

Highlights

Proven impact drive technology allows the use of a wide variety of water sources
Nozzle with diffuser pin for quick and easy sprinkler throw adjustment
Part and Full Circle sprinkler models
Top accessibility to all critical components for easy maintenance without digging

Features

Top Serviceable

Maintenance on the sprinkler can be performed from the top of the sprinkler without the need for digging. The Triton-L has a ‘tool free’ easy to remove lid that provides easy sprinkler access.

Full Circle & Part Circle

The Triton-L is available in full and full/part circle models.

Full Circle (K): factory pre-set 360° arc
Part Circle (W): 30 – 330° – via arc adjustment springs
360° – lift the trip lever

Robust Construction

Constructed from brass, stainless steel, engineered plastics and housed in a hot dipped galvanised can, the Triton-L has been built to last.

Fast Sprinkler Rotation Speed

360° arc in under 1 minute.

Specifications

Nozzle Sizes:

9, 11 & 13 mm

Operating Pressure:

300 – 800 kPa

Radius Range:

20.0 – 32.0 m

Flow Rate:

113 – 330 Lpm

Trajectory:

22°

Inlet:

40 mm (1.5”) BSPF
