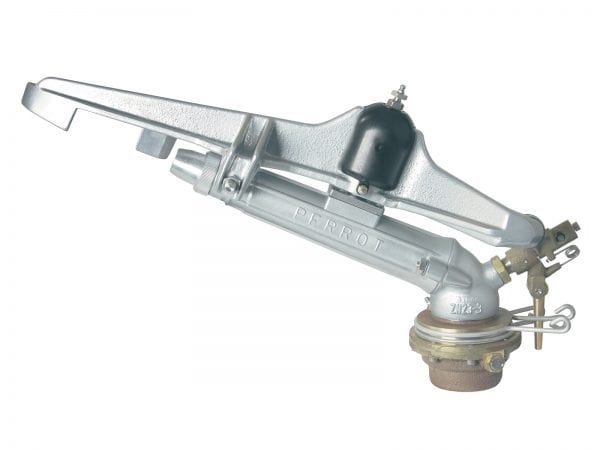

ZN 23

Highlights

Slow reverse impact designed for even water application
Protection cap maintains axle clean for trouble free operation
Solid sprinkler construction engineered
Part and Full Circle in one sprinkler

Features

Full Circle and Part Circle Operation

ZN 23 can be adjusted to operate both as full and part circle:

30 – 330° – via arc adjustment springs
360° – by lifting the trip lever or remove the arc stops

Slow Reverse Impact

Designed to return at a slower speed for more even water application.

Protection Cap

Protection cap ensures that the impact arm axle remains clean for trouble free operation.

Adjustable Rotation Speed

Rotation speed of the sprinkler can be adjusted by increasing or decreasing tension on the braking plate.

Specifications

Nozzle Sizes:

16, 20 and 24 mm

Operating Pressure:

300 – 700 kPa

Radius Range:

33.5 – 50.5 m

Flow Rate:

262.8 – 903.7 Lpm
